Fujikura ARCMaster FSM-100 Series Specialty Fiber Fusion Splicers
Fujikura ARCMaster FSM-100 Series Specialty Fiber Fusion Splicers provide advanced plasma-zone control for large-diameter, polarization-maintaining, dissimilar, and other specialty optical fibers. The FSM-100M, FSM-100P, FSM-100M+, and FSM-100P+ support precision splicing, Sweep Arc processing, fiber shaping, tapering, glass processing, and dual splice-loss estimation. Available from Simbol Test Systems, an authorized Canadian distributor and service center for AFL and Fujikura products.
Download the Fujikura ARCMaster FSM-100 Series Specialty Fiber Fusion Splicers Specification Sheet (PDF)
Reference:
FSM-100_WEB
Brand:
Add to compare0

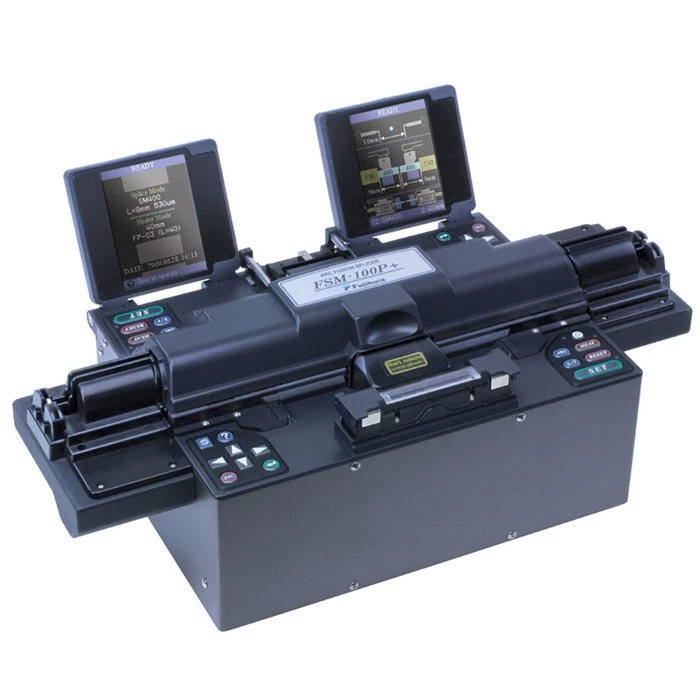

Fujikura ARCMaster FSM-100 Series Specialty Fiber Fusion Splicers
The Fujikura ARCMaster FSM-100 Series Specialty Fiber Fusion Splicers are advanced optical fiber processing systems developed for manufacturing, laboratory, production, photonics, and research applications. The series includes the FSM-100M, FSM-100P, FSM-100M+, and FSM-100P+, providing specialized configurations for large-diameter fibers, polarization-maintaining fibers, dissimilar fibers, fiber shaping, and demanding glass-processing workflows.
ARCMaster splicers use advanced plasma-zone control to provide the flexibility required for specialty fiber fusion. Their split V-groove clamping and adjustable electrode systems allow the arc discharge area to be adapted to the fiber diameter and processing requirement. This helps the FSM-100 Series support standard telecommunications fibers, large-diameter fibers, heat-sensitive fibers, and other specialized optical fiber structures.
Depending on the selected model, the FSM-100 Series can support precision fusion splicing, polarization-maintaining fiber alignment, tapering, lens formation, glass processing, Mode Field Adapter fabrication, Tapered Fused Bundle processing, FBG applications, end-cap processing, and the splicing of fibers with different cladding diameters or mode-field diameters.
Advanced Specialty Fiber Processing with the ARCMaster FSM-100 Series
The Fujikura ARCMaster FSM-100 Series combines configurable arc control, specialized alignment methods, multiple calibration modes, fiber-profile learning, and detailed splice-loss estimation to support applications beyond conventional telecom fusion splicing.
- Advanced plasma-zone control: Adjusts fiber and electrode positioning to optimize heat distribution for standard, small-diameter, large-diameter, and heat-sensitive fibers.
- Split V-groove clamping: Supports a broad range of fiber cladding and coating diameters without routine V-groove or clamp replacement.
- Enhanced Sweep Arc: Moves the fibers through the plasma zone to improve heat distribution during dissimilar fiber splicing, tapering, and fiber shaping.
- Multiple arc-calibration methods: Supports conventional calibration, melt-back calibration, and real-time calibration based on arc-brightness observation.
- Fiber Profile Learning: Stores fiber profile and focusing information to support accurate observation and repeatable processing.
- Dual splice-loss estimation: Uses cold and warm fiber images to support detailed splice-loss evaluation.
- PM fiber alignment: The FSM-100P and FSM-100P+ support PANDA and other compatible polarization-maintaining fibers.
- EndView observation: The FSM-100M+ and FSM-100P+ include an end-face observation system for exotic and non-circular fibers.
- Programmable glass processing: Supports multi-step processes for tapering, shaping, lens formation, and other non-splicing operations.
- PC and power-meter communication: USB and GPIB interfaces support firmware, data, control, and power-meter-feedback workflows.
Plasma-Zone Control and Sweep Arc Processing
Specialty fibers often require more precise heat distribution than standard telecommunications fibers. The ARCMaster platform addresses this requirement through adjustable electrode gap, electrode offset, vertical fiber positioning, and controlled fiber movement through the plasma zone.
The FSM-100M and FSM-100P provide a Sweep Arc range of up to ±5 mm. The FSM-100M+ and FSM-100P+ extend this capability to ±18 mm and add motorized electrode oscillation. This Plasma Zone Path Modulation creates a wider and more versatile heating area for extra-large-diameter fiber splicing, tapering, and glass processing.
Three selectable arc-calibration methods help users adapt the process to different fibers. Conventional calibration supports standard fiber, melt-back calibration provides additional parameters for specialty and large-diameter fibers, and real-time calibration observes arc brightness with a fiber-brightness learning function.
Polarization-Maintaining Fiber Alignment
The FSM-100P and FSM-100P+ are designed for polarization-maintaining fiber applications. These models support fast PANDA alignment using the Profile Alignment System and Interrelation Profile Alignment for additional PM fiber types.
The FSM-100P+ also provides EndView PM fiber alignment, including the ability to align the PM fiber core. Theta rotation supports alignment of compatible non-PM large-mode-area fibers by helping align both the core and the pump guide or inner cladding.
These PM-capable configurations are suitable for photonics research, fiber laser production, sensing systems, medical applications, optical component manufacturing, and other processes requiring controlled polarization-axis alignment.
EndView Observation and Extra-Large-Diameter Fiber Processing
The FSM-100M+ and FSM-100P+ include an EndView observation system for non-circular, holey, photonic crystal, polygon-shaped, and other exotic fibers. The fiber end-face image is directed through a compatible mirror-equipped fiber holder into the observation system.
These Plus models support silica-based optical fibers with cladding diameters from 60 to 1200 µm. Their extended Z-drive travel, electrode oscillation, long Sweep Arc range, and programmable special functions make them suitable for extra-large-diameter fiber processing and advanced glass-shaping operations.
Why Buy ARCMaster FSM-100 Splicers from Simbol Test Systems?
Simbol Test Systems supplies professional specialty fusion splicers, precision fiber cleavers, coating strippers, ultrasonic cleaners, fiber holders, electrodes, cleaning products, and related preparation accessories. As an authorized Canadian distributor and service center for AFL and Fujikura products, we support customers with model selection, repair, maintenance, and technical service.
Selecting the correct ARCMaster model depends on the fiber type, cladding diameter, coating diameter, PM alignment requirement, EndView requirement, sweep length, glass-processing operation, and accessory configuration. Simbol Test Systems can help identify the appropriate FSM-100 model, kit, holders, cleaver, stripper, electrodes, and preparation accessories for your application.
ARCMaster FSM-100 Series Model Comparison
| Feature | FSM-100M | FSM-100P | FSM-100M+ | FSM-100P+ |
|---|---|---|---|---|
| Primary Application | Specialty and large-diameter fiber processing | Specialty, large-diameter, and PM fiber processing | Extra-large-diameter fiber processing with EndView | Extra-large-diameter and PM fiber processing with EndView |
| Cladding Diameter | 60 to 500 µm | 60 to 500 µm | 60 to 1200 µm | 60 to 1200 µm |
| Coating Diameter | 100 to 2000 µm | 100 to 2000 µm | 60 to 2000 µm | 60 to 2000 µm |
| PM Fiber Splicing | Not included | PANDA and other compatible PM fibers | Not included | PANDA and other compatible PM fibers |
| EndView Observation | Not included | Not included | Included | Included |
| EndView PM Alignment | Not applicable | Not included | Not applicable | Included |
| Electrode Oscillation | Not included | Not included | Included | Included |
| Sweep Range | ±5 mm | ±5 mm | ±18 mm | ±18 mm |
| Dimensions | 311 x 232 x 160 mm | 311 x 232 x 160 mm | 470 x 232 x 160 mm | 470 x 232 x 160 mm |
| Approximate Weight | 7.5 kg | 8.0 kg | 8.5 kg | 9.5 kg |
ARCMaster FSM-100 Series AFL Ordering Information
| Model or Configuration | Description | AFL No. |
|---|---|---|
| ARCMaster FSM-100M Fusion Splicer | Machine-only configuration with FH-110-250 and FH-110-900 fiber-holder pairs, spare electrodes, ADC-15 adapter, ACC-02 cord, USB cable, cleaning swabs, software, manual, transit case, and one-year factory warranty | S014821 |
| ARCMaster FSM-100M Fusion Splicer Kit | Includes the FSM-100M machine package plus RS01 Thermal Stripper, CT52 Cleaver, and SPA-RS02-08 spacer | S014822 |
| ARCMaster FSM-100P Fusion Splicer | Machine-only configuration with FH-110-250, FH-110-400, and FH-110-900 fiber-holder pairs, spare electrodes, power accessories, USB cable, software, manual, transit case, and one-year factory warranty | S014823 |
| ARCMaster FSM-100P Fusion Splicer Kit | Includes the FSM-100P machine package plus RS01 Thermal Stripper, CT52 Cleaver, and SPA-RS02-08 spacer | S014824 |
| ARCMaster FSM-100M+ Fusion Splicer | Machine-only configuration with standard and EndView fiber holders, standard and LDF electrodes, EV-LS01 EndView light source, power accessories, cleaning accessories, software, manual, and transit case | S014813 |
| ARCMaster FSM-100P+ Fusion Splicer | Machine-only configuration with 250 µm and 400 µm standard and EndView holders, FH-100-900 holder, standard and LDF electrodes, EV-LS01 light source, power accessories, software, manual, and transit case | S014815 |
| One-Year Extended Warranty | Extends the factory warranty by one year | S012996 |
| Two-Year Extended Warranty | Extends the factory warranty by two years | S013000 |
FSM-100M and FSM-100P Specifications
| Applicable Fibers | Silica-based SMF, MMF, NZDSF, EDF, DCF, LDF, PMF, and other compatible specialty fibers |
| Cladding Diameter | 60 to 500 µm |
| Coating Diameter | 100 to 2000 µm |
| Glass-Clamping Cleave Length | 8 to 10 mm, standard 9 mm |
| Coating-Clamping Cleave Length | 3 to 5 mm, standard 4 mm |
| Typical SMF Splice Loss | 0.03 dB |
| Typical MMF Splice Loss | 0.02 dB |
| Typical NZDSF / LDF Splice Loss | 0.05 dB |
| Typical PMF Splice Loss | 0.06 dB on FSM-100P |
| SMF / MMF Splice Time | Approximately 15 seconds |
| NZDSF / LDF Splice Time | Approximately 25 seconds |
| PANDA PMF Splice Time | Approximately 35 to 50 seconds on FSM-100P |
| IPA PMF Splice Time | Approximately 90 to 300 seconds on FSM-100P |
| Return Loss | 60 dB or more |
| Sweep Length | ±5 mm |
| Electrode Life | Approximately 2,500 arc discharges under specified conditions |
| Proof Test | 1.96 to 2.45 N |
| Display | Two 4.1-inch TFT color LCD monitors |
| Operating Conditions | 0°C to 40°C, 0 to 95% RH, non-dew |
| Storage Temperature | -40°C to 80°C |
FSM-100M+ and FSM-100P+ Specifications
| Applicable Fibers | Silica-based SMF, MMF, NZDSF, EDF, DCF, LDF, PMF, and other compatible specialty fibers |
| Cladding Diameter | 60 to 1200 µm |
| Coating Diameter | 60 to 2000 µm |
| Glass-Clamping Cleave Length | 8 to 30 mm, standard 9 mm |
| Coating-Clamping Cleave Length | 3 to 5 mm, standard 4 mm |
| Typical SMF Splice Loss | 0.03 dB |
| Typical MMF Splice Loss | 0.02 dB |
| Typical NZDSF / LDF Splice Loss | 0.05 dB |
| Typical PMF Splice Loss | 0.06 dB on FSM-100P+ |
| SMF / MMF Splice Time | Approximately 15 seconds |
| NZDSF / LDF Splice Time | Approximately 25 seconds |
| PANDA PMF Splice Time | Approximately 35 to 50 seconds on FSM-100P+ |
| IPA PMF Splice Time | Approximately 70 to 300 seconds on FSM-100P+ |
| Return Loss | 60 dB or more |
| Sweep Range | ±18 mm |
| Electrode Gap | 1 to 3 mm |
| Electrode Offset | -0.3 to +0.1 mm |
| Electrode Life | Approximately 2,500 arc discharges under specified conditions |
| Proof Test | 1.96 to 2.45 N |
| Display | Two 4.1-inch TFT color LCD monitors |
| Operating Conditions | 0°C to 40°C, 0 to 95% RH, non-dew |
| Storage Conditions | -40°C to 80°C, 0 to 95% RH, non-dew |
Recommended Preparation Equipment and AFL Ordering Numbers
| Description | AFL No. |
|---|---|
| High Strength Preparation Kit with ultrasonic cleaner, PowerStrip, and PowerCleave | S013632 |
| Ultrasonic Cleaner | S014783 |
| HTS-12 High Tensile Stripper | S012094 |
| AFL PowerStrip High Tensile Stripper | S012808 |
| AFL PowerCleave High Strength Cleaver | S009972 |
| RS01 Thermal Stripper | S016815 |
| RS03-80 Thermal Stripper | S016842 |
| SPA-RS02-08 Spacer | S016818 |
| CT52 Fiber Cleaver | S017078 |
| CT58 Fiber Cleaver for 80 µm cladding | S017097 |
| ELCT2-25 Spare Electrodes for FSM-100M and FSM-100P | S002068 |
| ELCT3-25 Standard Electrodes for FSM-100M+ and FSM-100P+ | S015184 |
| ELCT3-25-LDF Electrodes for FSM-100M+ and FSM-100P+ | S015015 |
| ADC-15 AC Adapter | S014826 |
| ACC-02 AC Power Cord | S001171 |
| CC-27 Transit Case | S014825 |
| DCS-01 Dust Cleaning Swab | S014827 |
| EC-01 Electrode Cleaner | S015024 |
| USB-01 USB Cable | S014777 |
| Splicer V-Groove Cleaning Kit | S014397 |
FH-110 Fiber Holder Ordering Range
Compatible FH-110 Series fiber holders are available in pairs for coating or fiber diameter designations from 60 µm through 2000 µm. Available models include FH-110-60 through FH-110-2000, with AFL ordering numbers from S018215 through S018240. The appropriate holder should be selected according to the fiber diameter, coating diameter, clamping method, and selected ARCMaster model.
ARCMaster FSM-100 Series Model Selection Guide
Choose the FSM-100M for specialty and large-diameter fiber splicing within the 60 to 500 µm cladding range when PM alignment and EndView observation are not required.
Select the FSM-100P when polarization-maintaining fiber alignment is required within the 60 to 500 µm cladding range. Machine-only and complete kit configurations are available.
Choose the FSM-100M+ for extra-large-diameter fiber processing up to 1200 µm, EndView observation, electrode oscillation, and extended Sweep Arc operations without PM fiber alignment.
Select the FSM-100P+ for the broadest combination of extra-large-diameter fiber capability, PM fiber alignment, EndView observation, theta rotation, electrode oscillation, and advanced glass processing.
Professional Support and Availability
Before selecting an ARCMaster model, confirm the fiber type, cladding diameter, coating diameter, cleave length, PM alignment requirement, EndView requirement, sweep length, fiber-shaping process, holder size, cleaver, stripper, electrode type, and proof-testing requirements.
Contact Simbol Test Systems with your fiber specifications and processing requirements to request ARCMaster availability, AFL ordering assistance, configuration support, compatible accessories, maintenance, repair, or technical service.
