AFL FOCIS Flex3 Fiber Optic Connector Inspection System
AFL FOCIS Flex3 Fiber Optic Connector Inspection System is a compact, self-contained inspection scope for analyzing connector end-faces on patch cords and inside bulkhead adapters. One-button operation automatically focuses, centers, captures, analyzes, and saves results using supported Pass/Fail criteria. Its touchscreen, interchangeable adapter tips, Bluetooth connectivity, and integrated storage support efficient installation, troubleshooting, cleaning verification, and maintenance. Available from Simbol Test Systems, an authorized Canadian distributor and service center for AFL and Fujikura products.
Download the AFL FOCIS Flex3 Fiber Optic Connector Inspection System Specification Sheet (PDF)
AFL FOCIS Flex3 Fiber Optic Connector Inspection System

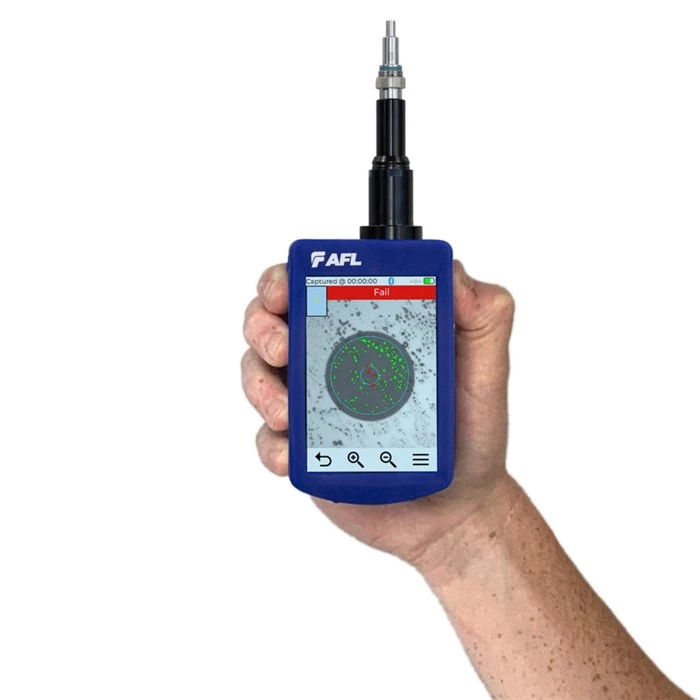

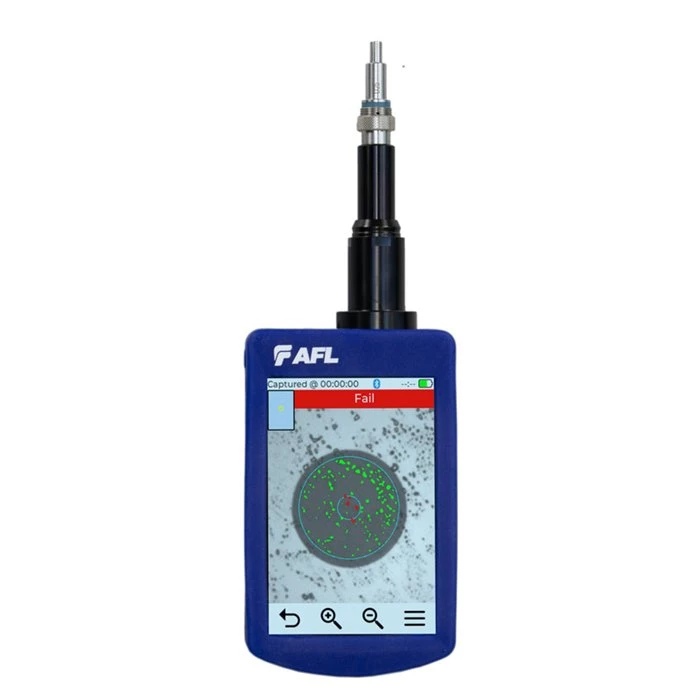

The AFL FOCIS Flex3 Fiber Optic Connector Inspection System is a compact, self-contained inspection scope designed to help technicians inspect, analyze, document, and verify fiber optic connector end-faces. It combines automated image capture, Pass/Fail analysis, integrated result storage, wireless connectivity, and professional reporting support in one portable handheld instrument.
Contamination, scratches, and other defects on connector end-faces can contribute to insertion loss, reflectance problems, unstable network performance, and unnecessary troubleshooting. The FOCIS Flex3 helps technicians inspect connectors before mating, verify cleaning results, document installation quality, and identify potential connector problems during maintenance and troubleshooting.
With a single button press, the FOCIS Flex3 automatically focuses, centers, captures, analyzes, and saves the connector end-face image. This streamlined workflow reduces manual steps and helps technicians apply consistent inspection procedures across multiple connectors, locations, and projects.
Fast Automated Inspection with the AFL FOCIS Flex3
The AFL FOCIS Flex3 Fiber Optic Connector Inspection System delivers a straightforward inspection workflow without requiring a separate OTDR or tethered display. Its integrated touchscreen, rechargeable battery, and compact handheld design support independent operation in field, laboratory, production, and network maintenance environments.
- One-button inspection: Automatically focuses, centers, captures, analyzes, and saves connector end-face results.
- Automatic Pass/Fail analysis: Supports IEC, IPC, AT&T, and user-defined inspection criteria.
- Integrated touchscreen: Displays connector images and analysis results directly on the instrument.
- Image and Table views: Results can be reviewed visually on the end-face image or by individual analysis zones.
- Self-contained operation: The tether-free design eliminates the need for a separate display during standard inspection work.
- Interchangeable adapter tips: Supports compatible patch-cord and bulkhead connectors with PC, UPC, and APC end-faces.
- Integrated result storage: Stores inspection images and Pass/Fail results for documentation and reporting.
- Wireless connectivity: Supports compatible AFL equipment and smart-device workflows through Bluetooth.
Clear Image and Table-Based Pass/Fail Results
The AFL FOCIS Flex3 presents inspection results in either Image or Table view. Image view overlays the Pass/Fail regions directly on the captured connector end-face image, making scratches, contamination, and defects easier to identify. Failing conditions are highlighted for quick review, while passing areas are clearly indicated.
Table view organizes the inspection results by analysis zones A, B, C, and D. It displays the applied inspection rule together with the individual scratch and defect findings for each zone. This provides technicians with a structured way to review why a connector passed or failed the selected criteria.
Supported analysis criteria include IEC 61300-3-35 ED2/ED3, AT&T TP-76461, IPC-8497-1, and user-defined criteria. This flexibility allows the instrument to support recognized connector inspection practices as well as organization-specific requirements.
Wireless Connectivity, Storage, and Reporting
The FOCIS Flex3 can pair wirelessly with a compatible AFL FlexScan OTDR or a smart device running AFL FlexApp. Connector inspection images and Pass/Fail results can be transferred into the FlexReporter software workflow for documentation, reporting, and result management.
Combining connector inspection and OTDR information can help technicians create a more complete record of an optical fiber link. The instrument supports FlexScan-compatible file naming, helping maintain a consistent workflow when inspection results are used with compatible AFL test equipment.
The FOCIS Flex3 provides storage for up to 10,000 files and supports JPG and GIF image formats. Its USB-C interface supports charging and USB mass-storage operation for transferring files to a computer. Bluetooth connectivity provides an additional method for sharing supported inspection data with compatible devices.
Interchangeable Tips for Common Fiber Connectors
Interchangeable adapter tips allow the FOCIS Flex3 to inspect a wide range of fiber optic connector formats. Available tips include options for SC, FC, ST, LC, universal 2.5 mm, universal 1.25 mm, E2000, and selected hardened connector applications.
Tips are available for PC/UPC and APC polished connector end-faces. The correct adapter tip should be selected according to the connector type, ferrule diameter, polish, and whether the connector is being inspected as an exposed patch-cord ferrule or inside a bulkhead adapter.
Typical applications include inspecting patch cords, examining connectors installed inside bulkhead adapters, verifying connector cleaning, documenting installation quality, troubleshooting optical links, and maintaining critical fiber infrastructure. The compact design makes the FOCIS Flex3 suitable for telecom, broadband, FTTH, enterprise, data center, utility, contractor, production, and laboratory environments.
Why Buy the AFL FOCIS Flex3 from Simbol Test Systems?
Simbol Test Systems supplies professional fiber optic inspection systems, optical test equipment, connector cleaning products, and accessories for telecom, broadband, data center, laboratory, production, installation, and network maintenance applications. As an authorized Canadian distributor and service center for AFL and Fujikura products, we support customers with product selection, calibration, repair, maintenance, and technical service.
Because the AFL FOCIS Flex3 is available in several kit configurations, selecting the correct model and adapter tips is important. Kits are available with LC or SC tips for UPC or APC connectors, while the no-tip configuration allows the inspection system to be configured with separately selected tips. Simbol Test Systems can help identify the correct kit and adapter combination for your application.
AFL FOCIS Flex3 Specifications
| Brand | AFL |
| Product Name | AFL FOCIS Flex3 Fiber Optic Connector Inspection System |
| Product Type | Handheld fiber optic connector inspection system |
| Inspection Applications | Patch-cord connectors and connectors installed inside bulkhead adapters |
| Focus Methods | Automatic focus and manual focus |
| Image Centering | Automatic centering of captured single-fiber images |
| Zoom | 1x, 3x, and 6x in Live, Capture, and Save modes |
| Pass/Fail Analysis | IEC 61300-3-35 ED2/ED3, AT&T TP-76461, IPC-8497-1, and user-defined criteria |
| Result Views | Image view and zone-based Table view |
| Stored Image Formats | JPG and GIF |
| File Storage Capacity | Up to 10,000 files |
| Result Storage Capacity | Up to 1,500 results |
| Display | 3.5-inch color TFT backlit touchscreen, 320 x 480 pixels |
| Battery | User-replaceable lithium-polymer battery |
| Typical Operating Time | Up to 8 hours under specified test conditions; up to 5 hours of continuous operation |
| Recharge Time | 4 hours or less with a supported charger |
| Wireless Connectivity | Bluetooth for compatible AFL instruments and supported smart devices |
| USB Interface | USB-C for charging and USB 2.0 mass-storage operation |
| Maximum No-Damage Live-Fiber Power | +20 dBm; connector images cannot be viewed while the fiber is live |
| Dimensions | 67 x 32 x 225 mm |
| Weight | 280 g |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -40°C to +70°C |
| Relative Humidity | 0 to 95% RH |
| Certifications | UL, CE, and FCC |
| Supplier and Support | Simbol Test Systems |
AFL FOCIS Flex3 Kit Ordering Information
| Model | Kit Description |
|---|---|
| FOCIS-FLEX3-N | FOCIS Flex3 kit with soft carry case, USB cable, AC charger, and FlexReports Basic software; adapter tips not included |
| FOCIS-FLEX3-LCU | FOCIS Flex3 kit with soft carry case, USB cable, AC charger, FlexReports Basic software, and two LC/UPC tips for ferrule and bulkhead inspection |
| FOCIS-FLEX3-LCA | FOCIS Flex3 kit with soft carry case, USB cable, AC charger, FlexReports Basic software, and two LC/APC tips for ferrule and bulkhead inspection |
| FOCIS-FLEX3-SCU | FOCIS Flex3 kit with soft carry case, USB cable, AC charger, FlexReports Basic software, and two SC/UPC tips for ferrule and bulkhead inspection |
| FOCIS-FLEX3-SCA | FOCIS Flex3 kit with soft carry case, USB cable, AC charger, FlexReports Basic software, and two SC/APC tips for ferrule and bulkhead inspection |
AFL FOCIS Flex3 Adapter Tips
| AFL No. | Description |
|---|---|
| FFLX-01-SC | SC/UPC bulkhead adapter tip |
| FFLX-01-FC | FC/UPC bulkhead adapter tip |
| FFLX-01-ST | ST/UPC bulkhead adapter tip |
| FFLX-01-LC | LC/UPC bulkhead adapter tip |
| FFLX-01-U25 | Universal 2.5 mm UPC ferrule adapter tip |
| FFLX-01-U125 | Universal 1.25 mm UPC ferrule adapter tip |
| FFLX-4S-ASC | SC/APC bulkhead adapter tip |
| FFLX-4S-AFC | FC/APC bulkhead adapter tip |
| FFLX-4S-ALC | LC/APC bulkhead adapter tip |
| FFLX-01-A25 | Universal 2.5 mm APC ferrule adapter tip |
| FFLX-01-A125 | Universal 1.25 mm APC ferrule adapter tip |
| FFLX-01-EXTS46 | Straight FOCIS Flex adapter extension tube, 46 mm |
| FFLX-01-EXTS80 | Straight FOCIS Flex adapter extension tube, 80 mm |
| FFLX-4S-E2K | E2000 PC/UPC bulkhead adapter tip |
| FFLX-4S-AE2K | E2000/APC bulkhead adapter tip |
| FFLX-4S-OTA | SC/APC OptiTap bulkhead adapter tip |
Reporting and Software Options
| Software or Product | Description |
|---|---|
| FlexReports Basic | Basic reporting software for compatible AFL inspection and test results |
| FlexReports Advanced | Advanced reporting software for expanded result management and report-generation features |
| FlexApp | Mobile application for transferring inspection results from supported AFL instruments |
| AFL FlexScan OTDRs | Compatible OTDRs can combine connector inspection and OTDR information within a coordinated testing and reporting workflow |
Professional Support and Availability
Select the AFL FOCIS Flex3 kit according to the connector types and polish styles being inspected. LC and SC kits are available with matching UPC or APC ferrule and bulkhead tips, while the no-tip kit can be configured with separately selected adapter tips.
Before ordering, confirm the connector format, ferrule diameter, PC/UPC or APC polish, bulkhead or patch-cord inspection requirement, reporting needs, and compatibility with existing AFL test equipment.
Contact Simbol Test Systems with your required model, connector types, adapter-tip requirements, and quantity to request availability, configuration assistance, calibration support, repair service, or technical support for the AFL FOCIS Flex3 Fiber Optic Connector Inspection System.
